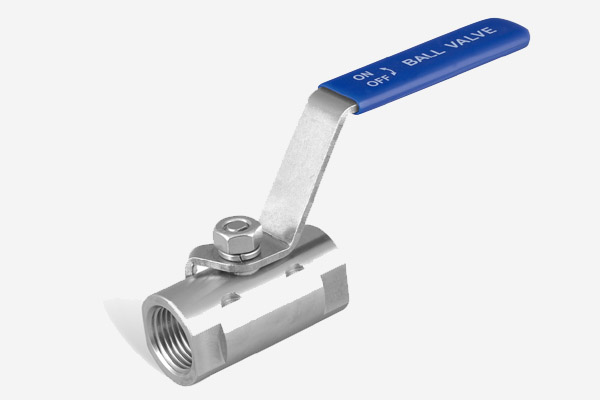

1PC Ball Valve-QF106
1PC Ball Valve-QF106

1PC Ball Valve

Material：304, 316, 1.4308, 1.4408, CF8, CF8M

Model：1PC

Connetion：Thread

Medium：Water, Oil, Gas



FEATURES

1/2"-2" 600PSI Reduce Port
Bi-directional flow R PTFE seats & PTFE seals
Max temperature:-25°C to 180°C 　
Thread:ASME B1.20.1 BS21.DIN2999/259,ISO228-1,JIS B 0203,ISO7/1

　

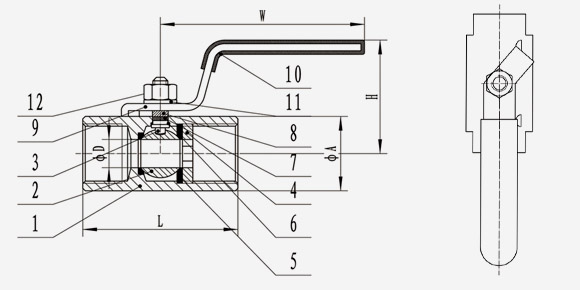

MATERIAL LIST

1PC Ball Valve-QF106

ITEM DESIGNATION ITEM MATERIAL　
1 BODY 1 316 / 304
2 BALL 1 316 / 304
3 STEM 1 316 / 304
4 INSERT 1 316 / 304
5 SEAT 2 R-PTFE
6 THREST WASHER 1 PTFE
7 PACKING 1 PTFE
8 GLAND WASHER 1 304
9 HANDLE 1 304
10 HANDLE COVER 1 PLASTIC
11 SPRING WASHER 1 304
12 HANDLE NUT 1 304

　

DIMENSIONS (mm)

ITEM \ SIZE 1/4" 3/8" 1/2" 3/4" 1" 1.1/4" 1.1/2" 2"
D 5 7 9 12.5 15 20 25 32
L 39.8 44.8 56.5 60 70 77.6 87 102
H 30 33 57 61 70 75 80 85
W 60 80 110 110 124 152 150 155
A 18.8 22.8 28.4 33.5 42 54.8 60.3 73+8
　
