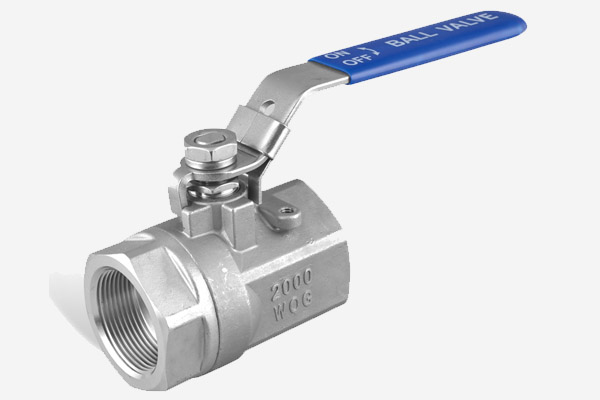

2PC Ball Valve-QF211
2PC Ball Valve-QF211

2PC Reduced port 1000 PSI Ball Valve

Material：304, 316, CF8, CF8M, WCB

Model：2PC

Connetion：Thread

Medium：Water, Oil, Gas



FEATURES

CF8M / CF8   2000psi Reduced port 1/4"-2"
Block RPTEF seats & RPTFE seats   bi-directional flow
Main market:America   Max temperature:-25°C to 180°
Thread: NPT

　

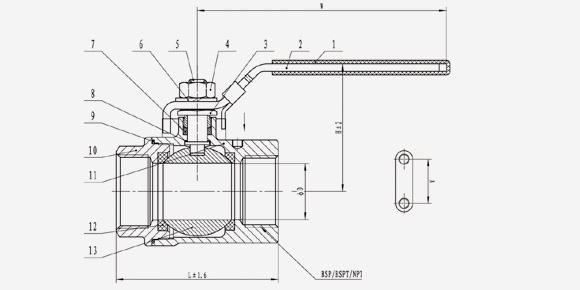

MATERIAL LIST

2PC Ball Valve-QF211

ITEM DESIGNATION QTY MATERIAL　
1 PLASIC SLEEVE 1 PVC
2 HANDLE 1 304
3 GLAND NUT 1 304
4 STEM NUT 2 304
5 STEM 1 316 / 304
6 SPRING WASHER 1 304
7 STEM PACKING 1 PTFE
8 THRUST WASHER 1 PTFE
9 JOING GASKET 1 PTFE
10 CAP 1 CF8 /CF8M
11 BODY 1 CF8 /CF8M
12 BALL SEAT 1 RPTFE
13 BALL 1 CF8 /CF8M

　

DIMENSIONS (mm)

ITEM \ SIZE INCH D L W H A
8 1/4" 10 51.5 95 52 28.5
10 3/8" 10 57 95 52 28.5
15 1/2" 12.5 62.5 95 52 28.5
20 3/4" 15 73.5 105 60 34.8
25 1" 19.5 84 125 73 34.8
32 1.1/4" 25 91.5 125 76 38.1
40 1.1/2" 32 99 180 89 38.1
50 2" 38 109.5 180 93 38.1
　
