Sanitary Ball Valve　
　
　 Sanitary Ball Valve HOME > PRODUCTS >> Sanitary Ball Valve (RSS) 　

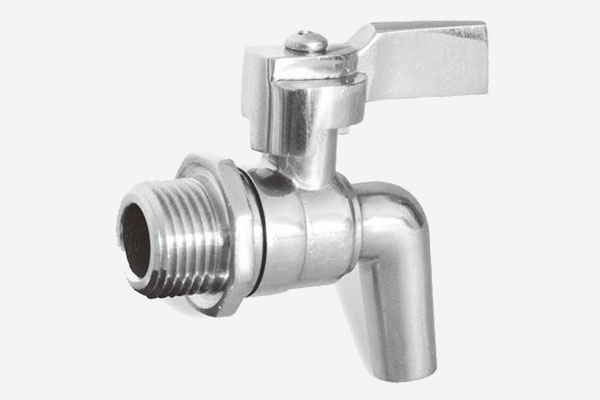

Bibcock Ball Valve-QF202W
Bibcock Ball Valve-QF202W

Bibcock Ball Valve

Material：304, 316, CF8, CF8M

Model：2PC, Other

Connetion：Thread

Medium：Water, Oil, Gas



FEATURES

For Food & Generral Chemical Service Applications Investment Casting
Blow-out Prooof Stem Design Temperature Range:-20°F to 450°F
Standard Compliance:ASME B16.34 /ANSI B1.20.1 /API598 End Type:Thread

　

MATERIAL LIST


Bibcock Ball Valve-QF202W

ITEM DESIGNATION MATERIAL
1 BODY 304/316
2 SLEEVE 304/316
3 BALL 304/316
4 SEAT PTFE
5 STEM 304/316
6 O-RING NBR
7 LEVER 304
8 SCREW 304

　

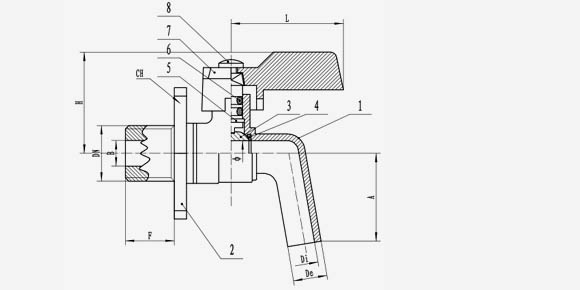

DIMENSIONS (mm)

SIZE \ ITEM B F L CH S Di De Φ A H
1/2" 13 13 38 29 49 8.5 13 10 29.5 36.5
3/4" 20.5 19 38 36 67 14 17 15 38 41.5
1" 22 20 38 43 68 14 17 15 38 41.5
　
