2PC Ball Valve　
　
　 2PC Ball Valve HOME > PRODUCTS >> 2PC Ball Valve (RSS) 　

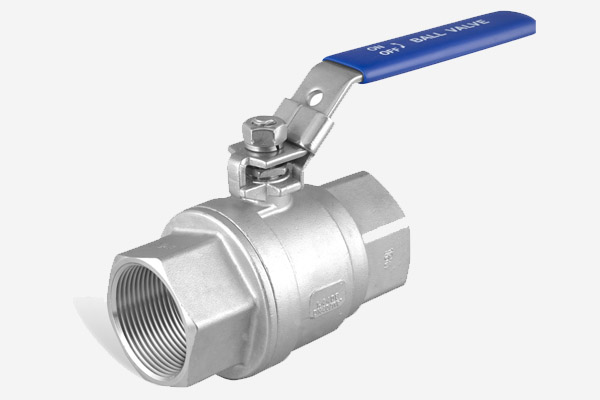

2PC Ball Valve-QF218
2PC Ball Valve-QF218

2PC Reduced port 1000 PSI Ball Valve

Material：CF8, CF8M, WCB

Model：2PC

Connetion：Thread

Medium：Water, Oil, Gas



FEATURES

CF8M / CF8   PN63
Full port
Main market:America   Max temperature:-25°C to 180°
Thread: ANSIB2.1,.BS21,DIN259/2999,ISO228-1jis B 0203 ,ISO7/1

　

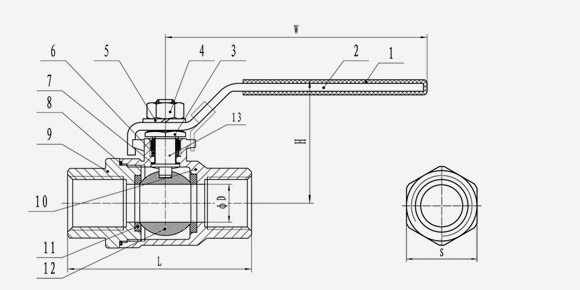

MATERIAL LIST

2PC Ball Valve-QF218

ITEM DESIGNATION QTY MATERIAL　
1 PLASIC 1 PLASTIC
2 HANDLE 1 304
3 GLAND NUT 1 304
4 STEM NUT 1 304
5 SPRING WASHER 1 304
6 STEM PACKING 1 PTFE
7 THRUST WASHER 1 PTFE
8 JOING GASKET 1 PTFE
9 CAP 1 CF8M / CF8
10 BODY 1 CF8M / CF8
11 BALL SEAT 2 RPTFE
12 BALL 1 CF8M / CF8
13 STEM 1 316 / 304

　

DIMENSIONS (mm)

ITEM \ SIZE D L H W S
1/4" 11.6 55 44 94 19
3/8" 12.5 60 44 94 21
1/2" 15 75 50 104 25.5
3/4" 20 80 59 113 31
1" 25 90 65 128 37.5
1.1/4" 32 110 79 156 45.5
1.1/2" 38 120 83 156 53.5
2" 50 140 99 194 66
2.1/2" 64 185 125 246 84
3" 76 205 130 246 99
4" 96 240 175 317 130
　
