2PC Ball Valve　
　
　 2PC Ball Valve HOME > PRODUCTS >> 2PC Ball Valve (RSS) 　

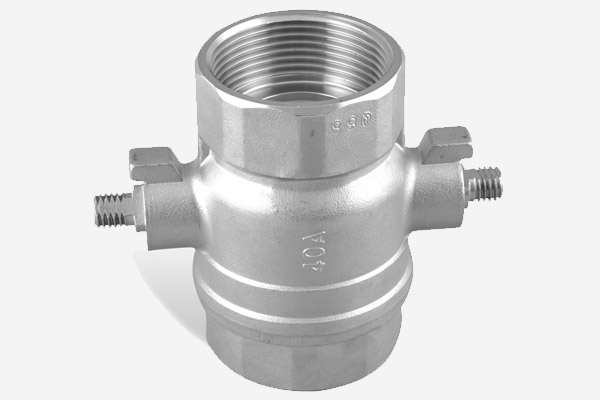

2PC Ball Valve-QF219
2PC Ball Valve-QF219

2PC Reduced port 1000 PSI Ball Valve

Material：CF8, CF8M, WCB

Model：2PC

Connetion：Thread

Medium：Water, Oil, Gas



FEATURES

CF8M / CF8   200PSI
Investment casting   Size:DN15-50
Max temperature:-25°C to 180°
Thread: ANSIB2.1,.BS21,DIN259/2999,ISO228-1jis B 0203 ,ISO7/1

　

MATERIAL LIST

2PC Ball Valve-QF219

ITEM DESIGNATION QTY MATERIAL　
1 STEM 1 316 / 304
2 O-RING 4 VITON
3 PACKING 2 PTEF
4 BODY 1 CF8M / CF8
5 ORING 1 VITON
6 SEAT 2 PTFE
7 BALL 1 CF8M / CF8
8 CAP 1 CF8M / CF8
9 STEM 1 316 / 304

　

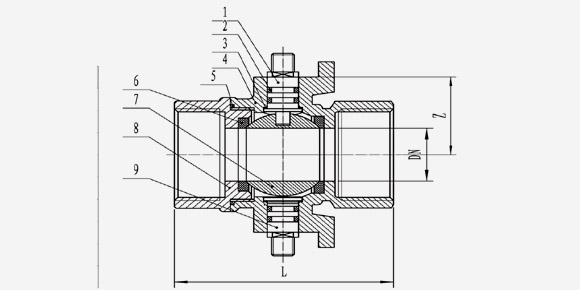

DIMENSIONS (mm)

ITEM \ SIZE DN L S Z
15A 10 48.5 25 21
20A 15 58.5 30 23.5
25A 20 69 38 31
32A 25 79 47 33
40A 32 89 53 41
50A 38 100.5 66 47
65A 50 125 82 64
80A 64 141 98 72
　
