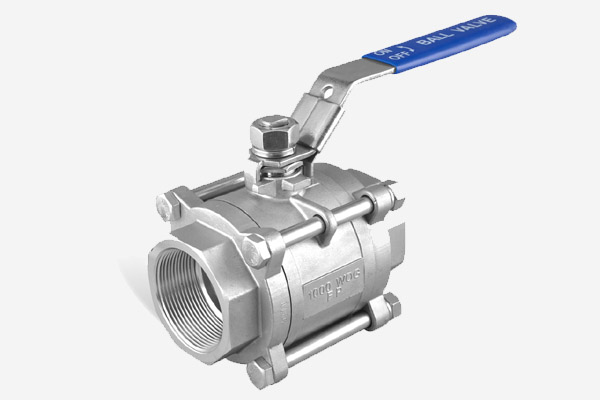

3PC Ball Valve-QF307
3PC Ball Valve-QF307

3PC Ball Valve

Material：304, 316, 1.4308, 1.4408, CF8, CF8M

Model：3PC

Connetion：BW

Medium：Water, Oil, Gas



FEATURES

CF8M/CF8 1000PSI Full Port
Main market:America bi-directional flow
Max temperature:-25°C to 180°C 　
Thread: ANSIB2.1,.BS21,DIN259/2999,ISO228-1jis B 0203 ,ISO7/1

　

MATERIAL LIST

3PC Ball Valve-QF307

ITEM DESIGNATION QTY MATERIAL　
1 HANDLE SLEEVE 1 PLASTIC
2 HANDLE 1 304
3 GLAND NUT 1 316/304
4 STEM NUT 1 304
5 SPRING WASHER 1 304
6 STEM PACKING 1 PTFE
7 THRUST WASHER 1 PTFE
8 END CAP 2 CF8/CF8M
9 BOLT 4(6) 304
10 NUT 4(6) 304
11 SPRING WASHER 4(6) 304
12 BODY 1 CF8/CF8M
13 BALL SEAT 2 RPTFE
14 BALL 1 CF8/CF8M
15 STEM 1 CF8/CF8M
16 LOCKING DEVICE 1 304
17 JOING GASKET 2 PTFE

　

产品的尺寸规格

SIZE \ ITEM ΦD L H W WALL THICKNESS
1/4" 11 54 48 91 3.7
3/8" 12 54 48 91 3.7
1/2" 15 64 52 103 4.1
3/4" 20 74 61 111 4.5
1" 25 85 65 123 4.9
1.1/4" 32 100 79 153 5.7
1.1/2" 38 110 83 153 5.8
2" 50 130 97 190 6.1
2.1/2" 64 158 135 243 6.4
3" 76 179 144 243 6.8
4" 94 223 172 400 7.2
　
