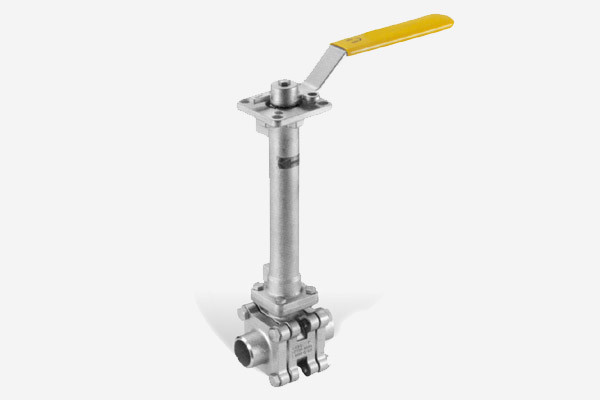

3PC Ball Valve-QF327
3PC Ball Valve-QF327

3PC Ball Valve

Material：304, 316, 1.4308, 1.4408, CF8, CF8M

Model：3PC

Connetion：BW

Medium：Water, Oil, Gas



FEATURES

CF8M/CF8 BUTT WELDED END CONNECTION
Investment Casting Applicabe to LNG industry,air separation industry
1/2"-2" 2000PSI 2.1/2"-4" 1000PSL
Max temperature:-196°C to 180°C

　

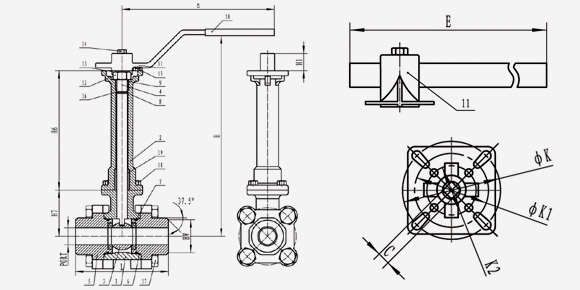

MATERIAL LIST

3PC Ball Valve-QF327

ITEM DESIGNATION QTY MATERIAL　
1 BODY 1 CF8M/CF8
2 BODY 1 CF8M/CF8
3 BALL 1 CF8M/CF8
4 ANTI STATIC STEM 1 316/304
5 CAP 2 CF8M/CF8
6 SEAL 2 GRAFOLL
7 SEAT 2 RPTFE
8 THRUST WASHER 1 RPTFE
9 PACKING 1 RPTFE
10 HANDLE COVER 1 PVC
11 HANDLE 4 304
12 NUT1 4 304
13 STOP WASHER 1 304
14 NUT2 2 304
15 STOP PIN 1 304
16 O-RING 1 VITON
17 BODY BOLT 8 304
18 F.E BODY BOLT 2 304
19 BEARING 1 25%CARBON 75%PCTFE

　

产品的尺寸规格

SIZE \ ITEM PORT L E H H1 H6 H7 C K K1 K2 BW
1/2" 15 75　 156　 274　 8 200 31.5 9 42 50 / 15.8
3/4" 20 90 　156 276 8 200 37 9 42 50 / 20.9
1" 25 100 　181 276 10 200 37 11 50 70 / 26.6
1.1/4" 31 110 　181 292 10 200 42 11 50 70 / 35
1.1/2" 38 150 　395 403 13 300 65 14 70 102 / 40.8
2" 50 150 　395 423 13 300 111 14 70 102 / 52.5
2.1/2" 63.5 190 　495 438 19 301 92.4 17 70 102 125 65.9
3" 70 220 　495 448 19 301 101.9 17 70 102 125 77.9
4" 97 270 　650 469 21 301 123.5 22 70 102 125 102.3
　
