2PC jIS Flanged Ball Valve-QF202FM

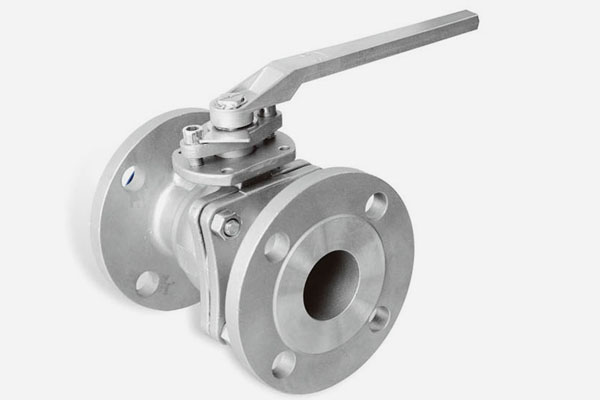

2PC jIS Flanged Ball Valve-QF202FM

2PC Wafer Flanged Ball Valve With Mouting Pad (DIN)

Material：304, 316, 1.4308, 1.4408, CF8, CF8M, WCB

Model：1PC, ISO5211 mounting pad

Connetion：Flange

Medium：Water, Oil, Gas



FEATURES

Investment Casting JIS 10K
Fire safe design Antistatic Deveice Cavity presure blance structure
Design standard:ASME B 16.34 API 6D API 608 Structure length:jis B2002
Flange end:jis B2220 Fire safe test:API 607 ISO 10497
Inspection and test:JIS B202 API 598 　

　

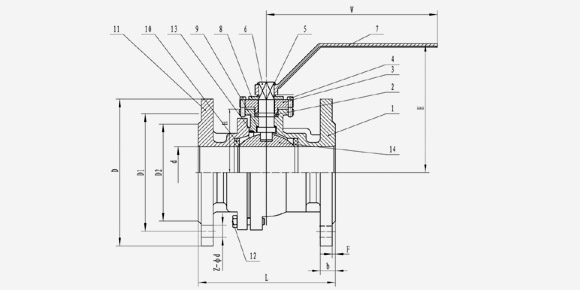

MATERIAL LIST

2PC jIS Flanged Ball Valve-QF202FM

ITEM DESIGNATION ITEM MATERIAL
1 BODY 1 CF8/CF8M
2 STEM PACKING 1 PTFE
3 GLAND 1 304
4 GLAND BOLT 2 304
5 SANP RING 1 316/304
6 STEM 1 304
7 HANDLE 1 304
8 STOPER 1 304
9 THRUSH WASHER 1 PTFE
10 BALL SEAT 2 RPTFE
11 CAP 1 CF8M/CF8
12 BOLT 6-8 304
13 BODY GASKET 1 PTFE
14 BALL 1 316/304

　

DIMENSIONS (mm)

SIZE \ ITEM d L D D1 D2 b f Z-Φd H W
5" 125 256 254 216 186 24 2 8-Φ18 260 600
4" 150 394 279 241.5 216 26 2 8-Φ18 350 600
6" 200 457 343 298.5 270 2 2 8-Φ18 500 600
　
