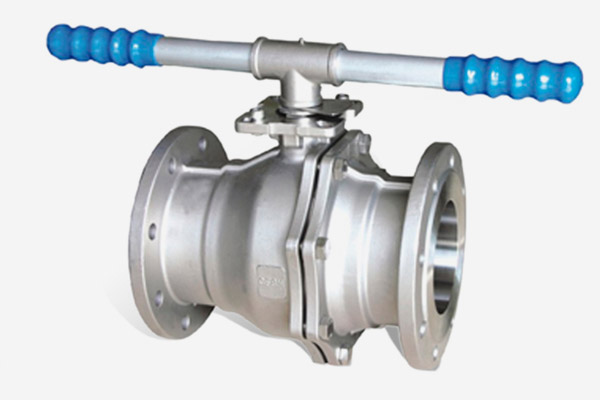

2PC Din Flanged Ball Valve-QF203MD
2PC Din Flanged Ball Valve-QF203MD

2PC Wafer Flanged Ball Valve With Mouting Pad (DIN)

Material：304, 316, 1.4308, 1.4408, CF8, CF8M, WCB

Model：1PC, ISO5211 mounting pad

Connetion：Flange

Medium：Water, Oil, Gas



FEATURES

Fire-safe design Inveestment Casting
Flange ends:DIN2543 Face to Face:DIN3202-F5
ISO5211 mounting pad Pressure rating:PN16
Working pressure:-25°C to 180°C Materal:CF8M,CF8,WCB

　

MATERIAL LIST

2PC Din Flanged Ball Valve-QF203MD

ITEM DESIGNATION ITEM MATERIAL
1 CAP 1 CF8M/CF8
2 BOLT 4(8.12) 304
3 BODY CASKET 1 PTFE
4 BODY 1 CF8M/CF8
5 BALL 1 316/304
6 BALL SEAT 2 PTFE
7 STEM 1 316/304
8 THRUSH WASHER 1 VITON
9 O-RING 1 PTFE
10 STEM PACKING 1 304
11 PACKING RING 1 301
12 BELLEYLLE WASHER 2 304
13 NUT 1 304
14 NUT STOPPER 1 304
15 PLATE WASHER 1 304
16 LOCK DEVICE 1 304
17 SLEEVE 1 304
18 JACKSCREW 2 304
19 HANDLE 1 CALVANIZED PIPE
20 PLASTIC COVER 1 PVC
21 STOP PLATE 2 304

　

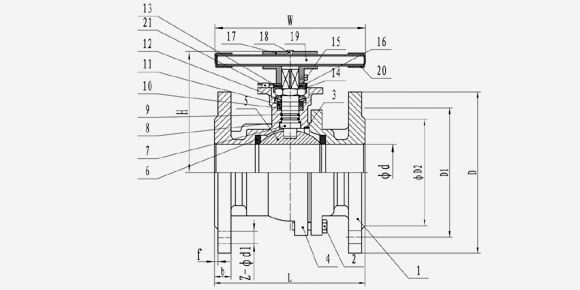

DIMENSIONS (mm)

SIZE \ ITEM d L D D1 D2 b f H W C Z-Φd1 N*M ISO5211
5" 125 195 250 210 188 22 3 228 600 22 8-Φ18　 200 F10/12
6" 150 225 285 240 212 22 3 246 600 22 8-Φ22 300 F10/12
8" 125 195 250 295 268 24 3 310 800 27 12-Φ22 400 F12/14
　
