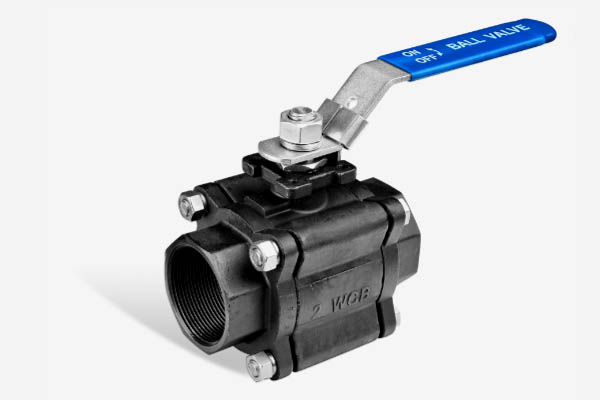

3PC Ball Valve-QF333
3PC Ball Valve-QF333

3PC Ball Valve

Material：304, 316, 1.4308, 1.4408, CF8, CF8M

Model：3PC

Connetion：BW

Medium：Water, Oil, Gas



FEATURES

WCB/CF8/CF8M 1000PSI
Investment casting Blow-out Proof stem
Locking Device Fiandle 　

　

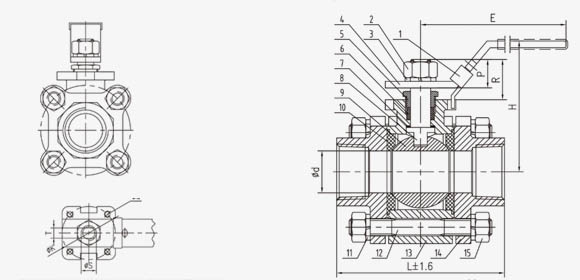

MATERIAL LIST

3PC Ball Valve-QF333

ITEM DESIGNATION MATERIAL　
1 LIMIT STOP 304/316
2 NUT 304/316
3 SPRING WASHER 304/316
4 HANDLE 201
5 GLAND 304/316
6 PACKING PTFE
7 THRUST WASHER PTFE
8 STEM 304/316
9 BALL 304/316
10 SEAT PTFE/RPTFE
11 SPRING WASHER 304/316
12 BOLT 304/316
13 BODY WCB/CF8/CF8M
14 BONNET WCB/CF8/CF8M
15 NUT 304/316

　

SIZE \ ITEM ΦD L H E P R A K T S
1/4" 12 70 62 125 11 17 M5 36 6 10
3/8" 12 70 62 125 11 17 M5 36 6 10
1/2" 15　 70 62 125 11 17 M5 36 6 10
3/4" 20　 81 66.5 125 14 20 M5 36 6 10
1" 25　 88 78 155 17 24 M5 42 7 12
1.1/4" 32　 109 82 155 14 24 M5 42 7 12
1.1/2" 38　 119 98 185 23.5 31.5 M6 50 12 16
2" 49　 141 109 185 23.5 31.5 M6 50 12 16
　
