Sanitary Ball Valve　
　
　 Sanitary Ball Valve HOME > PRODUCTS >> Sanitary Ball Valve (RSS) 　

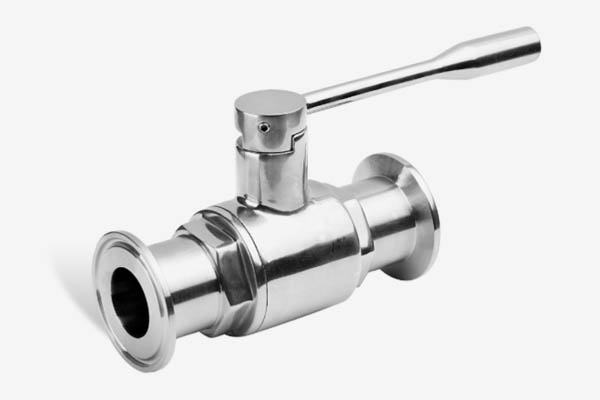

2PC SANITARY TRI-CLAMP BALL VALVE - QF270S
2PC SANITARY TRI-CLAMP BALL VALVE - QF270S

2PC SANITARY TRI-CLAMP BALL VALVE - QF270S

Material：304, 316, 1.4308, 1.4408, CF8, CF8M

Model：3PC

Connetion：BW

Medium：Water, Oil, Gas



FEATURES

Full Port Materil: CF8/CF8M
Max.Pressure: 0~25bar Ball Seat: With Cavity Filled PTFE
Internal and external polishing Tri-Clamp Connecting end

　

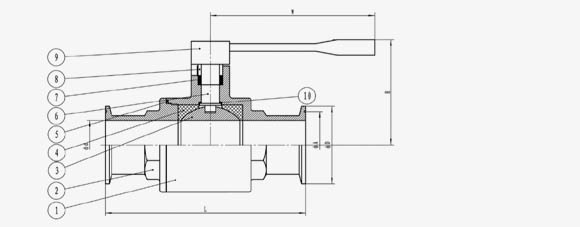

MATERIAL LIST

2PC SANITARY TRI-CLAMP BALL VALVE - QF270S

ITEM DESIGNATION QTY MATERIAL　
1 BODY 1 CF8M/CF8
2 CAP 1 CF8M/CF8
3 BALL 1 316/304
4 SEAT 2 RPTFE
5 SEAL 1 RPTFE
6 STEM 1 316/316L
7 STEM PACKING 1 RPTFE
8 GLAND NUT 1 304
9 HANDLE 1 304
10 THRUST WASHER 1 PTFE

　


SIZE \ ITEM ΦD L H D A W
3/8" 10 50 41 34 27.5 115
1/2" 15 80 42.5 34 27.5 115
3/4" 20 10 47 50.5 43.5 115
1" 25 123 50.5 50.5 43.5 125
1.1/4" 32 130 57 50.5 43.5 135
1.1/2" 38 150 66.5 50.5 43.5 150
2" 50 190 75.5 64 56.5 165
　
