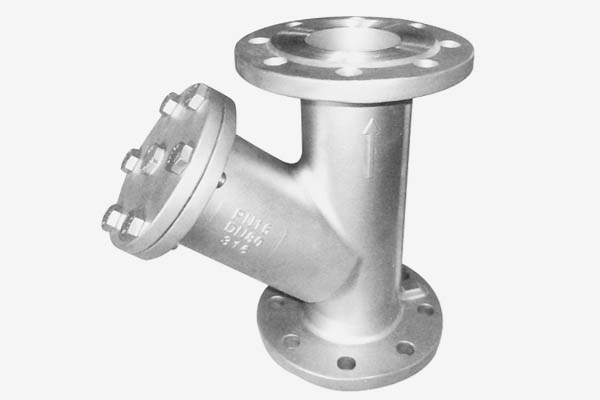

Y-Strainer　
　
　 Y-Strainer HOME > PRODUCTS >> Y-Strainer (RSS) 　
Y-Strainer
Y-Strainer

Y-Strainer

Material：304, 316, 1.4308, 1.4408, CF8, CF8M

Model：Other

Connetion：Thread

Medium：Water, Oil, Gas



FEATURES

Investment Castings For Body And Cap Flanged End:DIN 2501 PN16
Face To Face:EIN 3202 FI Pressuer Rating:PN16
Materiral:CF8M,CF8,CF3M,WCB Pressure Test:API598

　

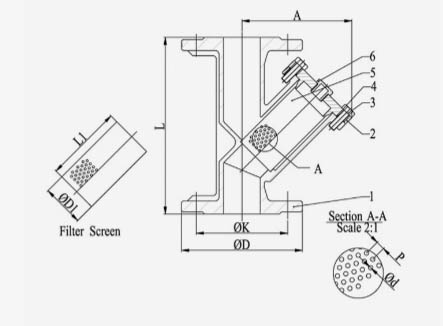

MATERIAL LIST

Y-Strainer

ITEM DESIGNATION QTY MATERIAL
1 BODY 1 CF8M
2 COVER 1 CF8M
3 BOLT 4(6) 304
4 GASKET 1 PTFE
5 FILTER SCREEN 1 CF8M
6 BLOW OFF PLUG 1 CF8M

　

DIMENSIONS (mm)

SIZE \ ITEM A ΦD ΦD1 L L1 P Φd K KGS
1/2" 75 95 22 130 56 2 1 65 1.79
3/4" 90 105 26 150 65 2 1 75 2.57
1" 100 115 32 160 75 2 1 85 3.60
1.1/4" 115 140 37 180 83 2 1 100 4.72
1.1/2" 130 150 47 200 95 2 1 110 6.02
2" 150 165 57 230 114 2 1 125 9.00
2.1/2" 190 185 69 290 152 3.5 2 145 12.80
3" 225 200 84 310 176 3.5 2 160 17.36
4" 230 220 105 350 180 3.5 2 180 20.03
　
