2PC Ball Valve　
　
　 2PC Ball Valve HOME > PRODUCTS >> 2PC Ball Valve (RSS) 　

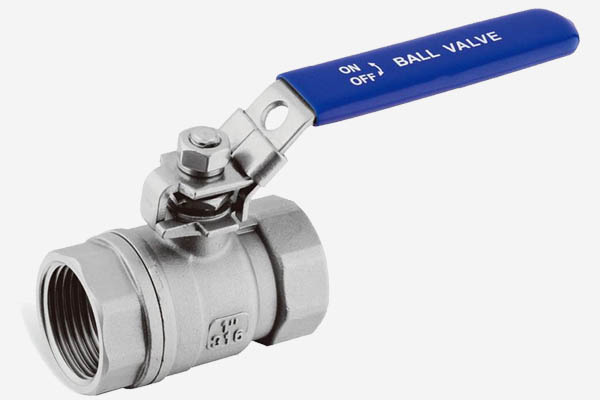

2PC Ball Valve-QF202
2PC Ball Valve-QF202

2PC Reduced port 1000 PSI Ball Valve

Material：CF8, CF8M, WCB

Model：2PC

Connetion：Thread

Medium：Water, Oil, Gas



FEATURES

1000PSI/PN63   Reduce Port
Investment Casting    Blow-out Proof Stem
Casting Approved AD2000-W0   PED97/23/PE (CE0036) Approved
Testing:API598,EN12266   Thread: ASME B1.20.1 BS21.DIN2999/259,ISO228-1,JIS B 0203,ISO7/1

　

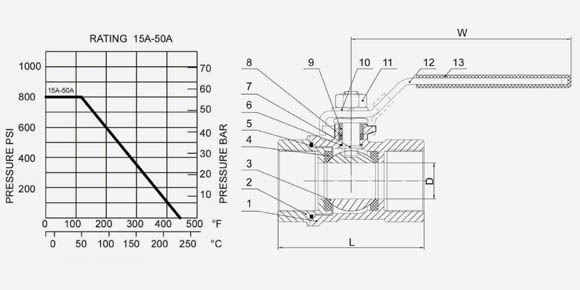

MATERIAL LIST

2PC Ball Valve-QF202

ITEM DESIGNATION QTY MATERIAL　
1 BODY 1 CF8/CF8M/WCB
2 CAP 1 CF8/CF8M/WCB
3 BALL 1 CF8/CF8M
4 BALL SEAT 2 RPTFE
5 JOINT GASKET 1 PTFE
6 THRUST WASHER 1 PTFE
7 STEM 1 304/306
8 STEM PACKING 1 PTFE
9 GLAND NUT 1 304
10 SPRING WASHER 1 304
11 STEM NUT 1 304
12 HANDLE 1 304
13 HANDLE SLEEVE 1 PVC

　

DIMENSIONS (mm)

SIZE \ ITEM D L W S
3/8" 9.2 38.5 76 21
1/2" 10 48.5 91 25
3/4" 15 58.5 91 30
1" 20 69 111 38
1.1/4" 25 79 111 47
1.1/2" 32 90 154 53
2" 38 100 154 66
　
