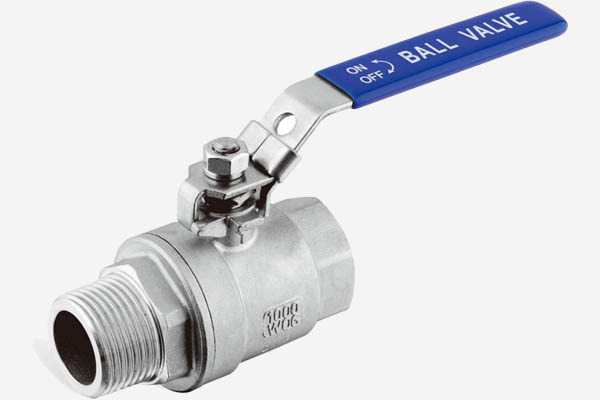

2PC Ball Valve-QF209
2PC Ball Valve-QF209

2PC Ball Valve

Material：CF8, CF8M, WCB

Model：2PC

Connetion：Thread

Medium：Water, Oil, Gas



FEATURES

1000PSI/PN63 Full Port
Investment Casting Blow-out-Proof Stem
PED97/23/PE(CE0035) Approved Locking Device Handle (option)
Inspection Testing:API598,EN12266 Casting approved AD2000-WO
Thread:ASME B1.20.1 BS21.DIN2999/259,ISO228-1,JIS B 0203,ISO7/1

　

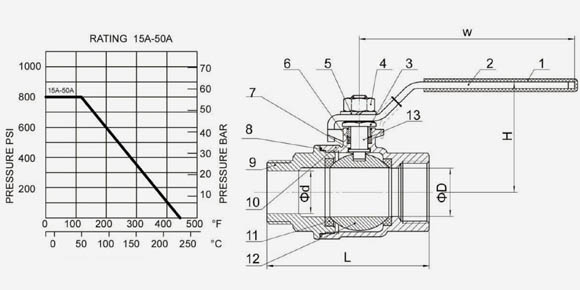

MATERIAL LIST

2PC Ball Valve-QF209

ITEM DESIGNATION QTY MATERIAL　
1 HANDLE SLEEVE 1 PVC
2 HANDLE 1 304
3 GLAND NUT 1 304/316
4 STEM NUT 1 304
5 SPRING WASHER 1 304
6 STEM PACKING 1 PTFE
7 THRUST WASHER 1 PTFE
8 JOINT GASKET 1 PTFE
9 CAP 1 CF8/CF8M
10 BODY 1 CF8/CF8M
11 BALL SEAT 2 RPTFE
12 BALL 1 CF8/CF8M
13 STEM 1 304/316

　

DIMENSIONS (mm)

SIZE \ ITEM D d L H W S
1/4" 11.6 8 55 48 91 19
3/8" 12.5 11.4 55 48 91 21
1/2" 15 13.6 71.5 52 91 25.5
3/4" 20 18.2 78 61 111 31
1" 25 23 91 65 111 37.5
1.1/4" 32 32 100 79 154 46.5
1.1/2" 38 38 112 83 154 53.5
2" 50 48 142 97 192 66
　
