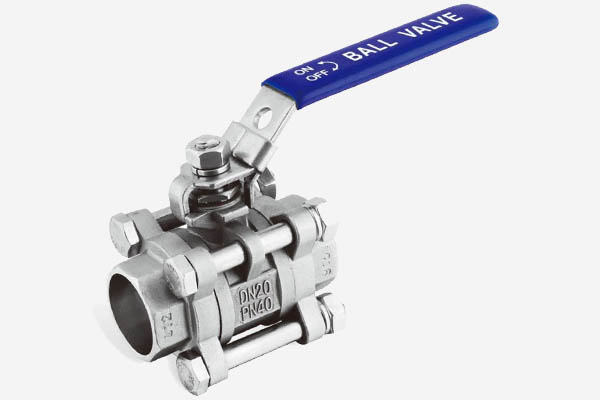

3PC Ball Valve-QF303
3PC Ball Valve-QF303

3PC Ball Valve

Material：304, 316, 1.4308, 1.4408, CF8, CF8M

Model：3PC

Connetion：SW

Medium：Water, Oil, Gas



FEATURES

1000PSI/PN63 Full Port
Investment Casting Blow-out-Proof Stem
Anti-Static device (option) PED97/23/PE(CE0036) Approved
Casting Approved AD2000-W0 Inspection Testing:API598,EN12266
Socket Weld:ASMEB16.25（SCH40）

　

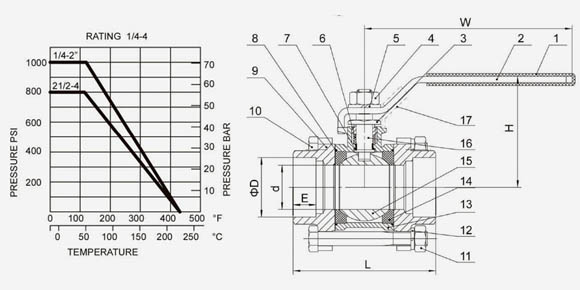

MATERIAL LIST

3PC Ball Valve-QF303

ITEM DESIGNATION QTY MATERIAL　
1 HANDLESLEEVE 1 PVC
2 HANDLE 1 304
3 GLAND NUT 1 304/316
4 STEM NUT 1 304
5 SPRING WASHER 1 304
6 STEM PACKING 1 PTFE
7 THRUST WASHER 1 PTFE
8 JOINT GASKER 2 PTFE
9 CAP 2 CF8/CF8M
10 BOLT 4(6) 304
11 BOLT NUT 4(6) 304
12 SPRING WASHER 4(6) 304
13 BODY 1 CF8/CF8M
14 BALL SEAT 2 RPTFE
15 BALL 1 CF8/CF8M
16 STEM 1 304/316
17 LOCKING DEVICE 1 304

　

DIMENSIONS (mm)

SIZE \ ITEM d D E L H W
1/4" 12 14.2 10 50 48 103
3/8" 12 17.6 10 50 48 103
1/2" 15 21.7 10 60 52 103
3/4" 20 27.1 13 70 61 123
1" 25 33.9 13 80 65 123
1.1/4" 32 42.6 13 93 79 153
1.1/2" 38 48.7 13 100 83 153
2" 50 61.1 16 125 97 185
2.1/2" 64 77 16 158 135 243
3" 76 89.8 16 179 144 243
4" 94 115.5 19 223 172 315
　
