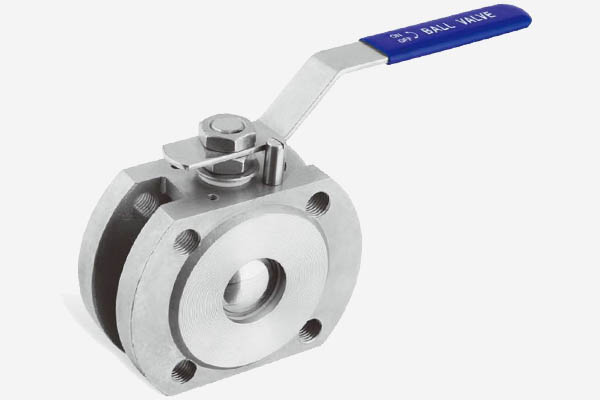

1PC Wafer Flanged Ball Valve (DIN)-QF101F
1PC Wafer Flanged Ball Valve (DIN)-QF101F

1PC Wafer Flanged Ball Valve (DIN)

Material：304, 316, 1.4308, 1.4408, CF8, CF8M

Model：1PC

Connetion：Flange

Medium：Water, Oil, Gas



FEATURES

PN16/PN40 Full Port
Investment Casting Blow-out-Proof Stem
PED97/23/PE(CE0036) Approved Casting Approved AD2000-W0
Anti-Static device (option) Design:EN12516
End Flange:DIN2542-DIN2545 Inspection Testing:AP1598,EN12266

　

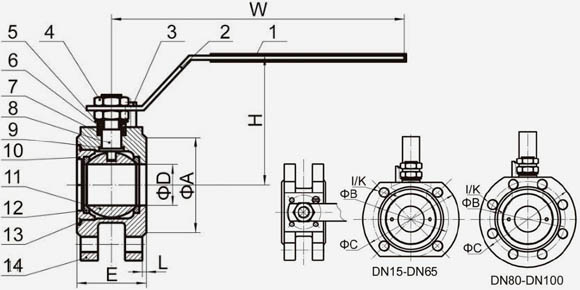

MATERIAL LIST

1PC Wafer Flanged Ball Valve (DIN)-QF101F

ITEM DESIGNATION QTY MATERIAL
1 HANDLE COVER 1 PVC
2 HANDLE 1 304
3 STOP BLOCK 1 304
4 STEM NUT 2 304
5 SPRING WASHER 2 304
6 STEM RING 1 304
7 STEM PACKING 2 PTFE
8 STEM 1 304/316
9 THUST WASHER 1 PTFE
10 CAP 1 CF8/CF8M
11 BALL 1 CF8/CF8M
12 BALL SEAT 2 RPTFE
13 JOINT GASKET 1 PTFE
14 BODY 1 CF8/CF8M

　

DIMENSIONS (mm)

SIZE \ ITEM ΦA ΦB ΦC ΦD E H W L I/K ISO5211 Pressure class
DN15 45 65 90 15 37 70 120 2 4-M12 F03 PN40
DN20 58 75 105 20 40 73 120 2 4-M12 F03
DN25 68 85 115 25 43 78 165 2 4-M12 F04
DN32 78 100 140 32 51 85 165 3 4-M16 F04
DN40 88 110 150 38 63 92 200 3 4-M16 F05
DN50 102 125 165 50 81 100 200 3 4-M16 F05
DN65 122 145 185 64 101 140 240 3 4-M16 F07 PN16
DN80 138 160 200 80 118 150 240 3 8-M16 F07
DN100 158 180 220 97 150 170 265 3 8-M16 F10
　
