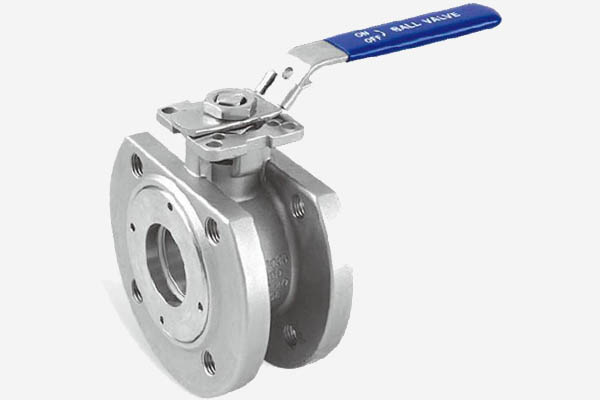

1PC Wafer Flanged Ball Valve-QF101M
1PC Wafer Flanged Ball Valve-QF101M

1PC Wafer Flanged Ball Valve With Mouting Pad (DIN)

Material：304, 316, 1.4308, 1.4408, CF8, CF8M, WCB

Model：1PC, ISO5211 mounting pad

Connetion：Flange

Medium：Water, Oil, Gas



FEATURES

PN16 Full Port
Investment Casting Blow-out-Proof Stem
PED97/23/PE(CE0036) Approved Anti-Static device (option)
Design:EN12516 Locking Device Handle (option)
End Flange:DIN2542-DIN2545 Inspection Testing:API1598,EN12266

　

MATERIAL LIST

1PC Wafer Flanged Ball Valve-QF101M

ITEM DESIGNATION MATERIAL
1 BODY CF8/CF8M
2 CAP CF8/CF8M
3 BALL CF8/CF8M
4 SEAL RPTFE
5 STEM 304
6 STEM PACKING PTFE
7 O-RING NBR
8 STEM SEAT PTFE
9 GLAND 304
10 SPRING WASHERS 301
11 NUT 304
12 WASHER 304
13 HANDLE SLEEVE PVC
14 HANDLE 304
15 LOCKING 304
16 BOLT 304
17 BOLT NUT 304
18 BOLT WASHER 304
19 BODY PACKING PTFE

　

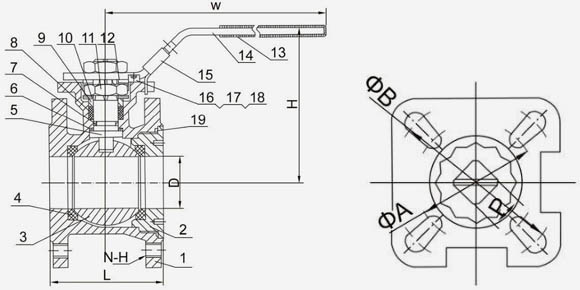

DIMENSIONS (mm)

SIZE \ ITEM D P A B N-H W H L ISO5211
DN15 15 9 36 72 4-M12 140 78 42 F04/03
DN20 20 9 36 42 4-M12 140 84 44 F04/03
DN25 25 11 42 50 4-M12 152 93 50 F04/03
DN32 32 11 42 50 4-M16 152 105 60 F04/03
DN40 40 14 50 70 4-M16 188 112 65 F05/04
DN50 50 14 50 70 4-M16 188 120 80 F05/04
DN65 65 17 70 102 4-M16 230 145 113 F07/05
DN80 76 17 70 102 8-M16 230 155 120 F07/05
DN100 94 22 102 102 8-M16 230 189 154 F10
　

Related Products：
　
