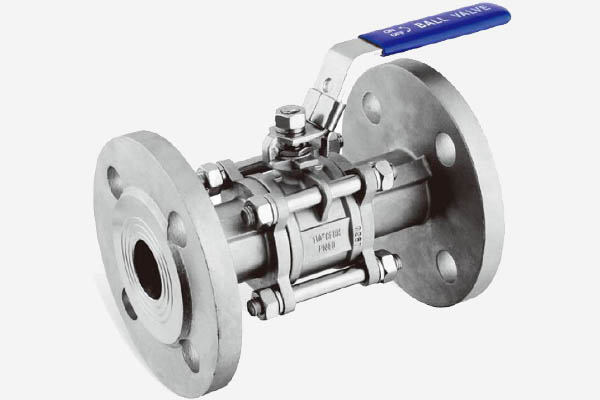

3PC Flanged Ball Valve (DIN)-QF301F
3PC Flanged Ball Valve (DIN)-QF301F

3PC Flanged Ball Valve (DIN)

Material：304, 316, 1.4308, 1.4408

Model：3PC

Connetion：Flange

Medium：Water, Oil, Gas



FEATURES

PN16-40 Full Port
Investment Casting Blow-out-Proof Stem
PED97/23/PE(CE0036) Approved Anti-Static device (option)
Design:DIN3357,EN12516 Face to Face:DIN3202-F4(DN15-100)
End Flange:DIN2501,PN10-40 Inspection Testing:DIN3230/3,EN12266

　

MATERIAL LIST

3PC Flanged Ball Valve (DIN)-QF301F

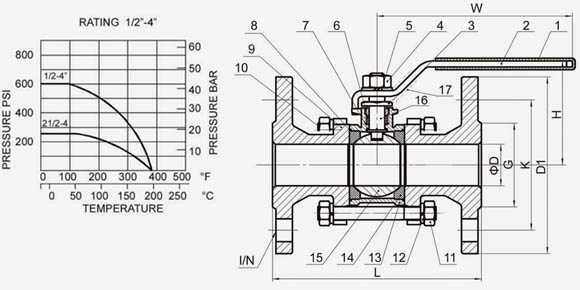

ITEM DESIGNATION QTY MATERIAL
1 HANDLE SLEEVE 1 PVC
2 HANDLE 1 304
3 GLAND NUT 1 304
4 STEM NUT 1 304
5 STEM WASHER 1 304
6 STEM PACKING 1 PTFE
7 THRUST WASHER 1 PTFE
8 JOINT GASKET 2 PTFE
9 END CAP 2 CF8/CF8M
10 BOLT 4(6) 304
11 NUT 8(12) 304
12 SPRING WASHER 8(12) 304
13 BODY 1 CF8/CF8M
14 BALL SEAT 2 RPTFE
15 BALL 1 CF8/CF8M
16 STEM 1 304/316
17 LOCKING DEVICE 1 304

　

DIMENSIONS (mm)

SIZE \ ITEM D L H W D1 K G I/N
1/2" 15 130 55 103 95 65 45 14/4
3/4" 20 150 61 103 105 75 58 14/4
1" 25 160 61 135 115 85 68 14/4
1.1/4" 32 180 78 135 140 100 78 18/4
1.1/2" 40 200 90 190 150 110 88 18/4
2" 50 230 97 190 165 125 102 18/4
2.1/2" 64 290 143 310 185 145 122 18/4
18/8
3" 76 310 152 310 200 160 138 18/8
4" 100 350 187 400 220 180 158 18/8
235 190 162 22/8
　
