3-Way Ball Valve-QF401L/T
3-Way Ball Valve-QF401L/T

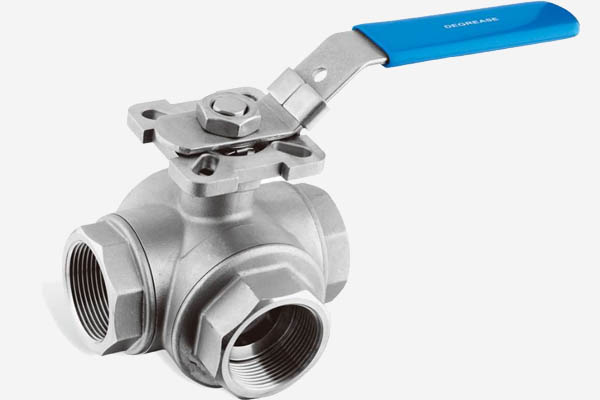

3-Way Ball Valve with Mounting Pad

Material：304, 316, 1.4308, 1.4408, CF8, CF8M

Model：Other

Connetion：Thread

Medium：Water, Oil, Gas



FEATURES

Reduce Port 1000PSI/PN63 Blow-out-Proof Stem
Investment Casting PED97/23/PE(CE0036) Approved
Anti-Static device (option) Inspection Testing:API598,EN12266
L or R Port Option Length Conform To DIN3202/4-M3
4 Sests For Rigid Ball Supporting Thread:ASME B1.20.1 BS21.DIN2999/259,ISO228-1,JIS B 0203,ISO7/1

　

MATERIAL LIST

3-Way Ball Valve-QF401L/T

ITEM DESIGNATION QTY MATERIAL　
1 BODY 1 CF8/CF8M
2 CAP(1) 2 CF8/CF8M
3 CAP(2) 1 CF8/CF8M
4 BALL 1 CF8/CF8M
5 BALL SEAT 4 RPTFE
6 STEM 1 304/316
7 THUST WASHER 1 PTFE
8 STEM PACKING 1 PTFE
9 GLAND NUT 1 304
10 SPRING WASHER 2 304
11 NUT 2 304
12 HANDLE COVER 1 PVC
13 HANDLE 1 304/316
14 WASHER 1 304
15 THRUST WASHER 1 304
16 O-RING 1 VITON
17 JOIN GASKET 1 PTEF

　

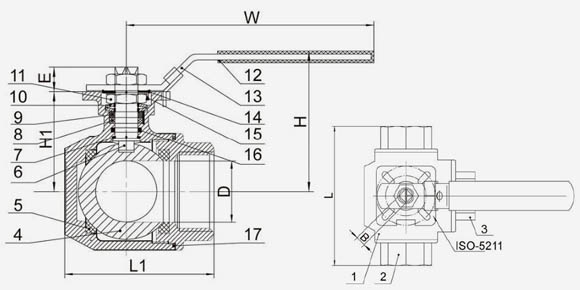

DIMENSIONS (mm)

SIZE \ ITEM ΦD W L±2 L1±2 H B 0 E±1 ISO5211 H1　
-0.07
1/4" 9 139 79 64 73 9 9 F04/03 42
3/8" 11 139 79 64 73 9 9 F04/03 42
1/2" 12.5 139 79 64 73 9 9 F04/03 42
3/4" 16 139 83 68 80 9 9 F04/03 49
1" 20 160 104 82 95 11 11 F05/04 59.5
1.1/4" 25 160 111 90 98 11 11 F05/04 63
1.1/2" 32 185 126 106 110 14 14 F07/05 73.5
2." 38 185 147 123 119 14 14 F07/05 82.8
　
